Signature Ivory Mic Mount

“Your pickup, your name , your sound.”

Enjoy free shipping when you order Signature Tops together with your NV TONE microphone. If you prefer to purchase Signature Tops separately, a flat $19 shipping fee applies worldwide.

NV-SW-SG-MM-IV
$25
No tax
Check Compatibility With Our Mic

✔ Fast shipping
✔ 20-day returns
✔ 2-year warranty

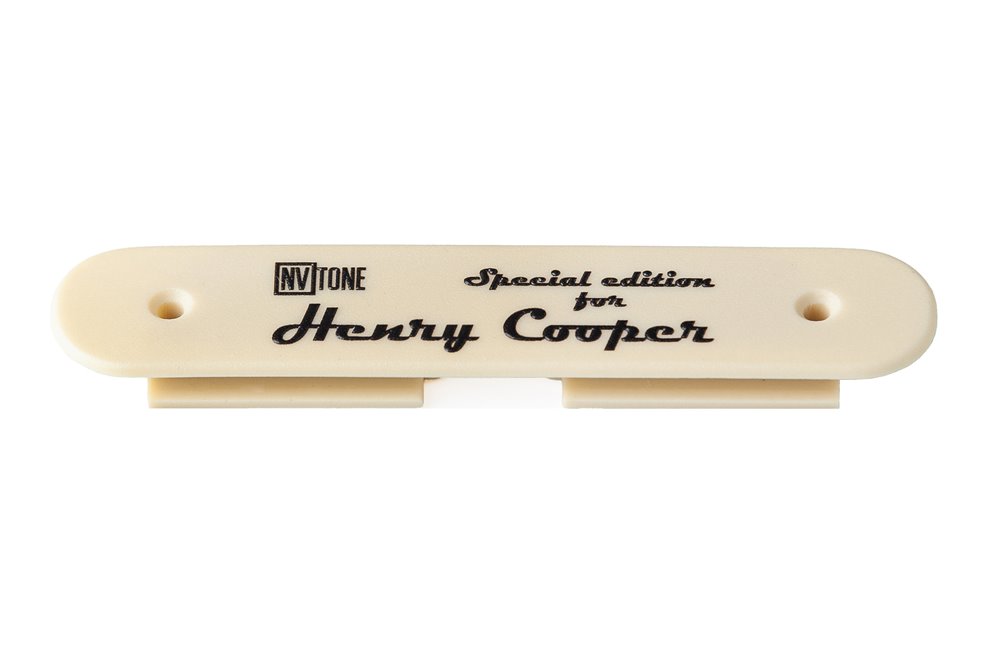

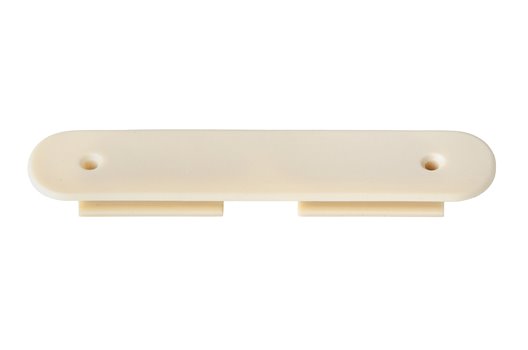

NV-TONE Signature Ivory Mic Mount

Personalize your NV-TONE microphone with a custom Signature Top — a premium interchangeable front plate created to make your microphone truly unique.

Personal Customization

This accessory is designed as an additional engraved top plate for your NV-TONE microphone. Add your name, surname, artist nickname or create a personalized gift for another musician.

When placing your order, include the desired inscription in the order comments. Maximum length: 19 characters including spaces.
Important Information
1 If no custom text is provided, the plate will automatically be engraved with the purchaser’s first and last name.
2 Custom fonts, logos or graphic artwork are not available for this product.

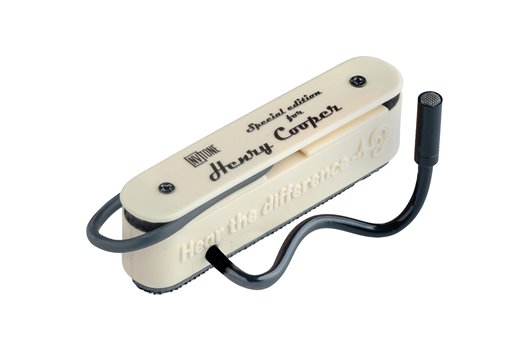

3 The upper line is always engraved with: NV TONE Special Edition for
4 The lower line contains your personal inscription in English only (maximum 19 characters).
5 Offensive language, profanity or discriminatory content will not be accepted.
Why Choose a Signature Top?

A personalized Signature Top transforms your microphone into more than just a professional audio tool — it becomes part of your musical identity and stage presence.

Perfect for performers, recording artists, collectors and custom musician gifts.

Installation Guide

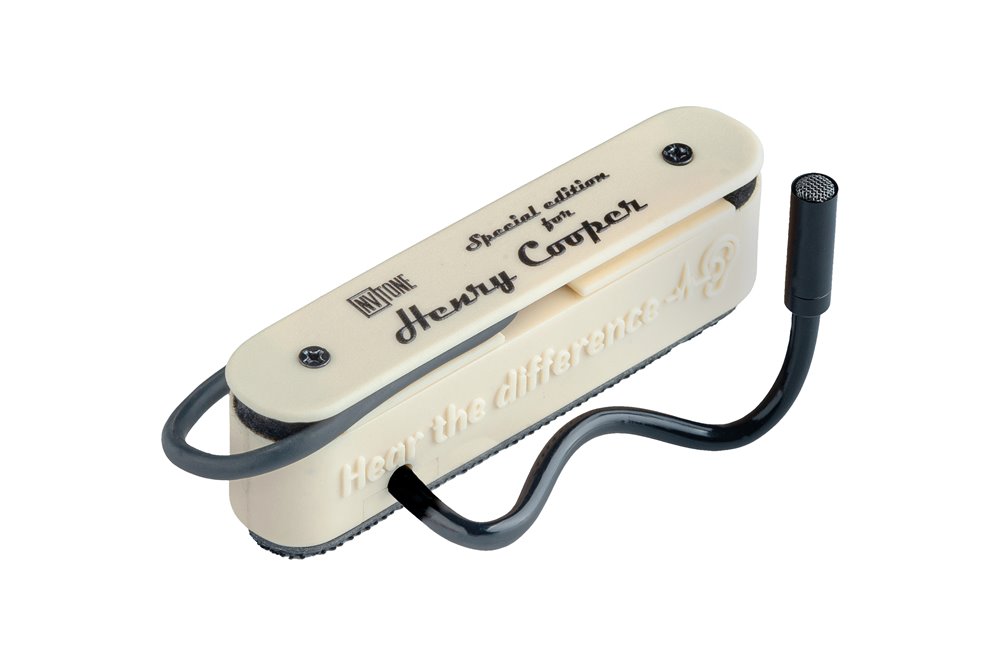

Compatible with both external and integrated NV-TONE microphone systems.

1 Unscrew the screws on the microphone top cover.

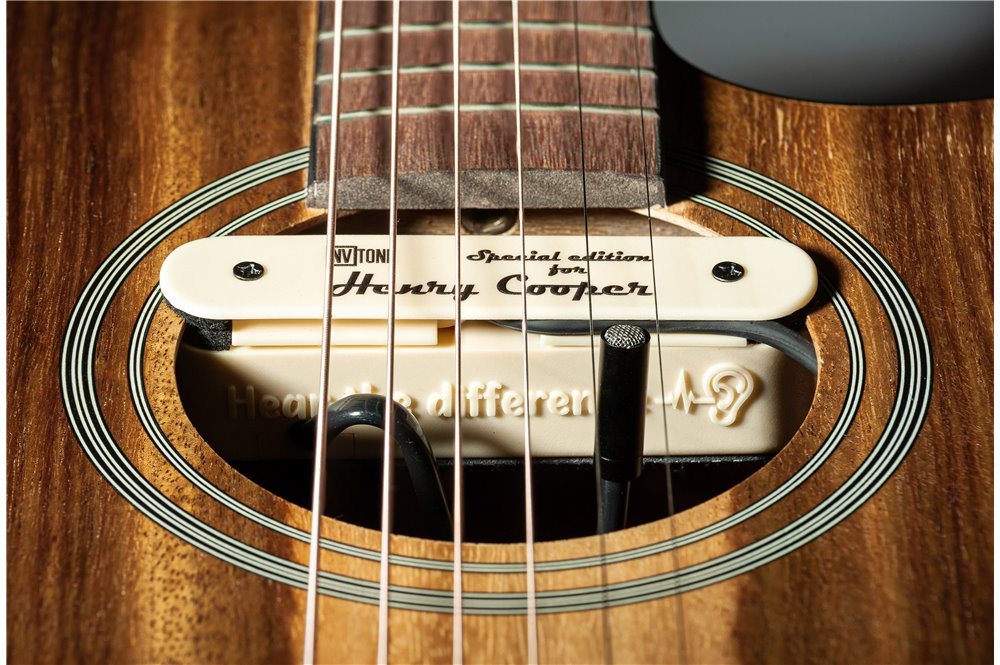

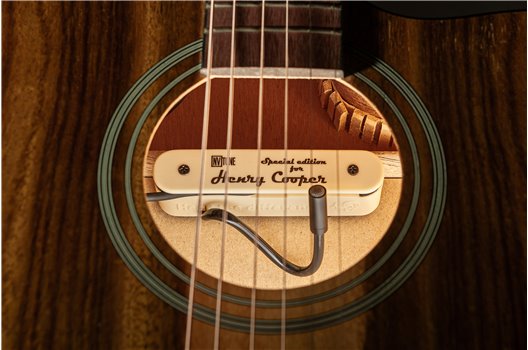

2 Replace the original top cover with your custom engraved Signature Top.
3 Tighten the screws securely.
4 Insert the audio cable into the left or right cable groove depending on your setup.
Your personalized NV-TONE microphone is now ready for use.

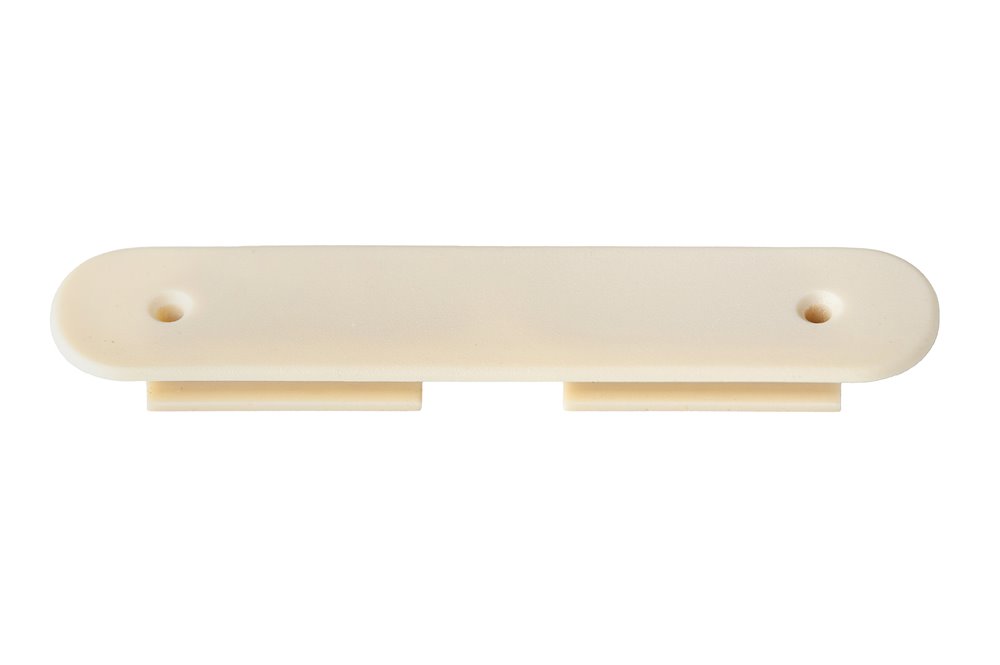

Material
Polycarbonate (lightweight and durable)
Lenght
103mm
Width
21mm
Minimum soundhole diameter
80 mm
Maximum soundhole diameter
92 mm
Smart Cable Management
Integrated left and right cable locks ensure secure and tidy cable routing

How It Works

The NV-Tone Swan microphone delivers a natural, clear and balanced sound on both classical nylon-string guitars and acoustic steel-string guitars.

1 Install the microphone inside your guitar using the official NV-Tone installation guide.
2 Connect the microphone to the XLR input of your audio interface, mixer, preamp or recorder.
3 Enable phantom power. The microphone works with +12V to +48V phantom power.
4 Adjust input gain and output volume. Usually 30–40% is enough.
5 Play, record or perform live with a stable and natural microphone sound.
Important: If your equipment does not provide +12–48V phantom power, use an external phantom power supply such as XVIVE P1, BEHRINGER PS400, ART Phantom I, Mackie M48, PSC 48 Phantom or a similar device.

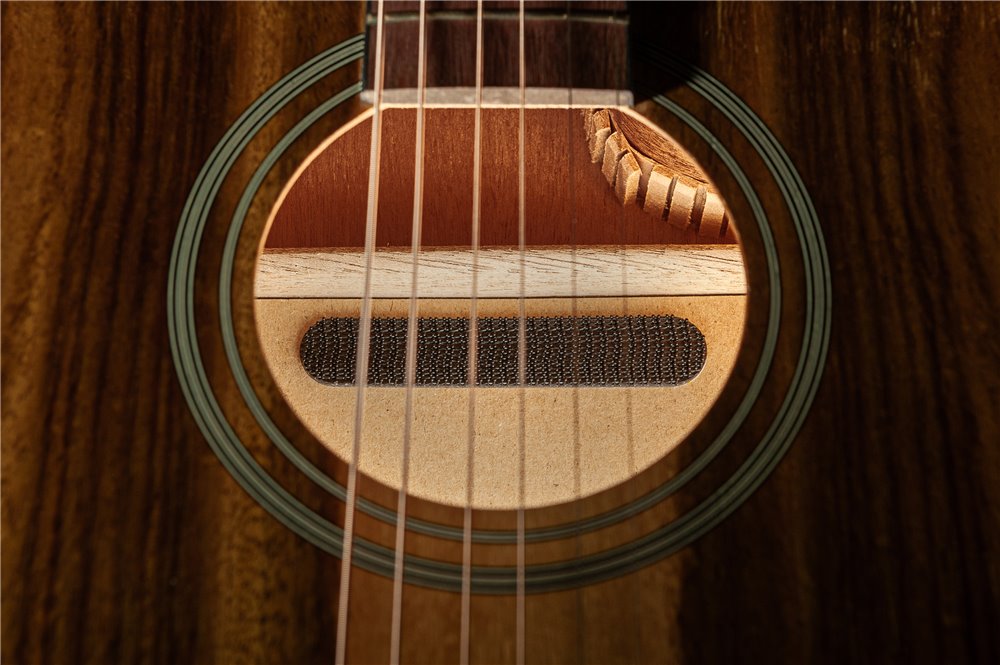

Alternative Mounting Method with 3M Dual Lock SJ3540

For players who prefer a removable installation, the microphone can also be mounted inside the guitar using 3M Dual Lock SJ3540. This method provides a firm hold without drilling the guitar body.

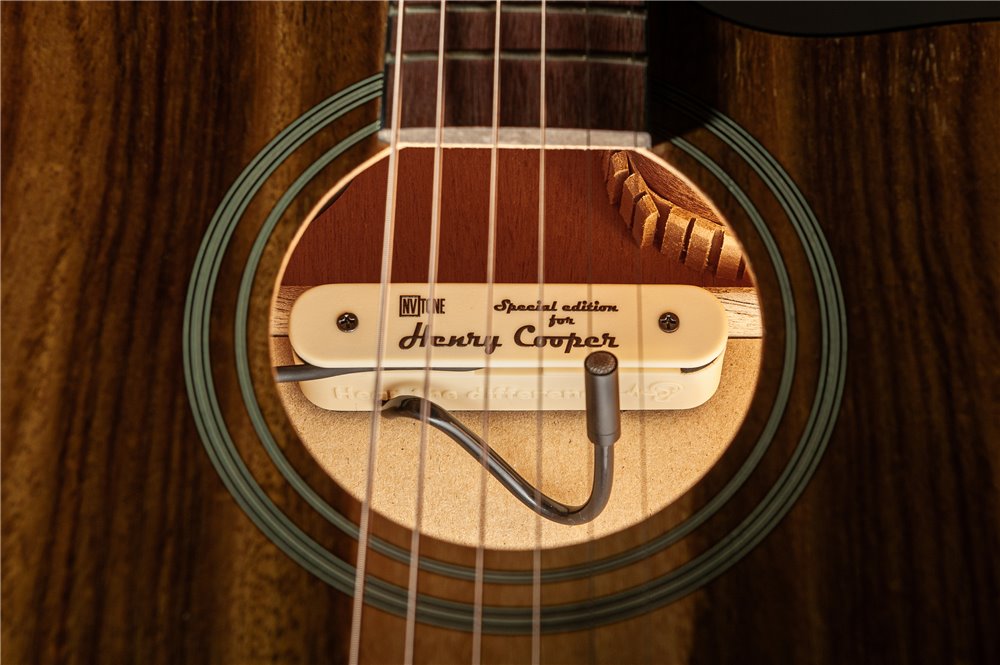

NV-Tone Swan microphone mounted inside guitar 3M Dual Lock SJ3540 inside acoustic guitar Alternative installation of NV-Tone Swan microphone

Benefits of this method

  • Strong fixation: 3M Dual Lock provides a stronger hold than regular Velcro and can safely support the microphone mount.
  • No drilling: the guitar body does not need to be drilled or permanently modified.
  • Vibration reduction: the dense structure of the fastener helps reduce unwanted vibration transfer.
  • Removable installation: the microphone can be attached or removed when needed.

Installation recommendations

  1. Clean the mounting area inside the guitar from dust and rough particles.
  2. Degrease the surface using a safe cleaner suitable for musical instruments.
  3. Apply the 3M Dual Lock tape firmly to the selected area.
  4. Allow the adhesive to set for 24 hours before attaching the microphone.

Installation & Operation Guide

The NV-Tone Swan microphone system is designed for quick installation and professional performance on both classical and acoustic guitars.

External Setup

For External Installation

1 Unwind the cable and select the correct orientation for left-handed or right-handed guitar positioning.
2 Secure the cable in the appropriate position inside the guitar body.
3 Slightly loosen the pickup screws before installation.
4 Carefully place the pickup into the soundhole and tighten the screws securely.
5 Connect the XLR output to a mixer, combo amplifier, audio interface or other microphone input device.
6 Enable phantom power if it is not already active.
Internal Setup

For Internal Installation

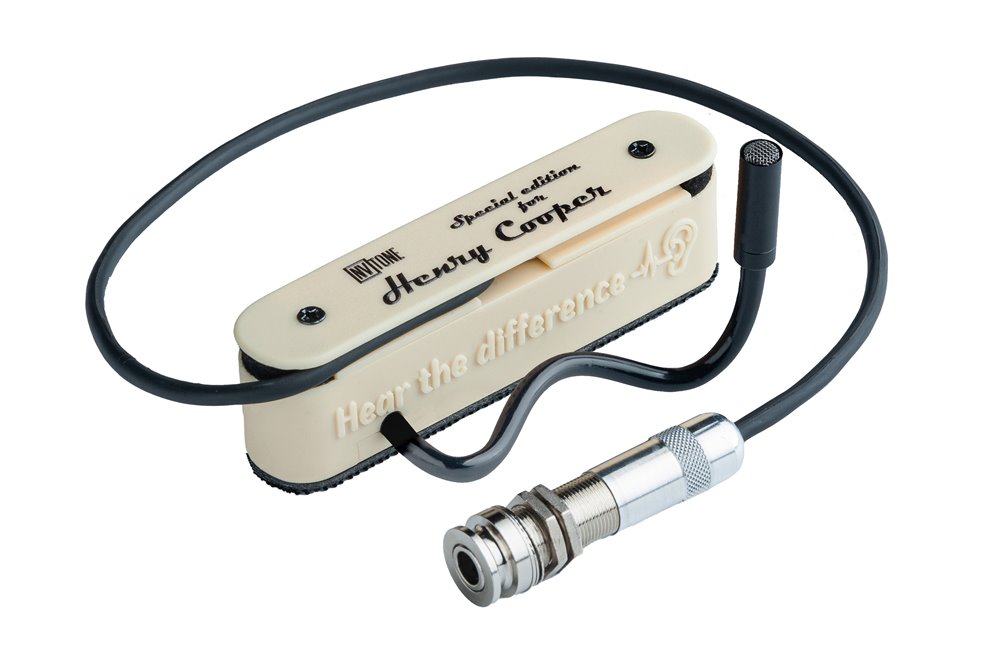

1 Remove the strap lock from the bottom of the guitar if installed. This location is recommended for the endpin output.
2 Create a 12 mm (15/32") hole using a drill or router.
3 Install and secure the endpin using the supplied nut and locknut. Adjust the output length beforehand if necessary.
4 Select the proper cable orientation for left-handed or right-handed guitar installation.
5 Secure the cable neatly inside the instrument body.
6 Loosen the pickup screws slightly before mounting.
7 Place the pickup into the resonator opening and tighten the screws carefully.
8 Connect the stereo jack to the internal guitar socket.
9 Connect the XLR output to your mixer, amplifier, preamp or audio interface.
10 Activate +48V phantom power if it is not enabled by default.

Delivery

International Express Shipping

  • UPS Express: 5–7 business days
  • Alternative Express Mail: 9–14 business days for remote locations
  • Tracking: included with every order

For U.S. customers, duties are already included in the price. For other countries, local taxes or customs fees may apply.


Returns & Warranty

  • 20-Day Money-Back Guarantee from the delivery date
  • 2-Year Warranty against manufacturing defects
  • Item must be returned in original condition

Have questions about shipping, returns, or duties? Contact us — we’ll be happy to help.
