NV Tone Swan XT (Integrated) Mocca

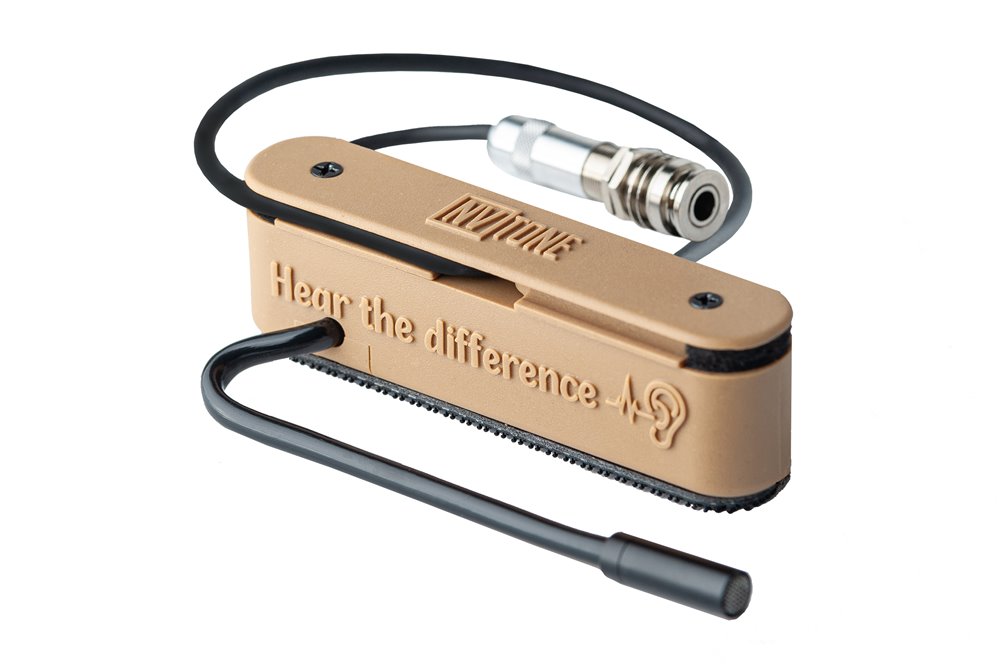

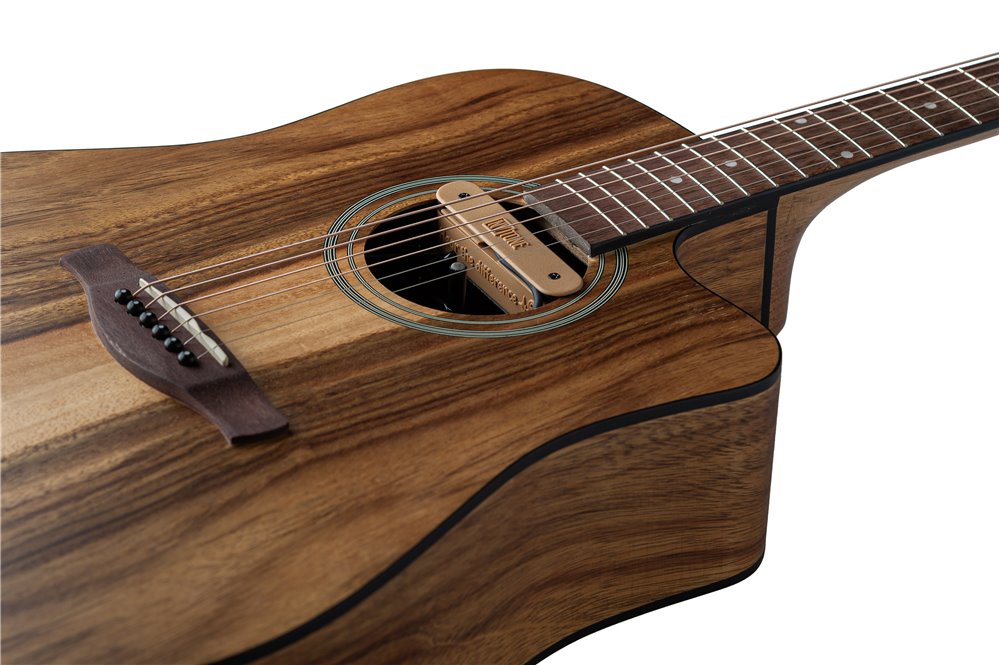

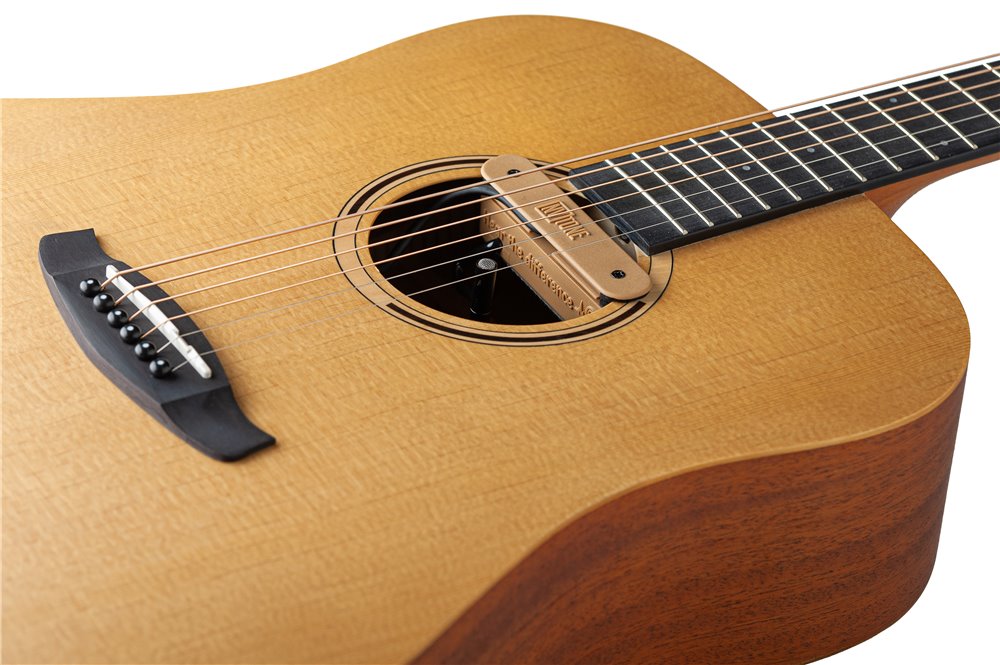

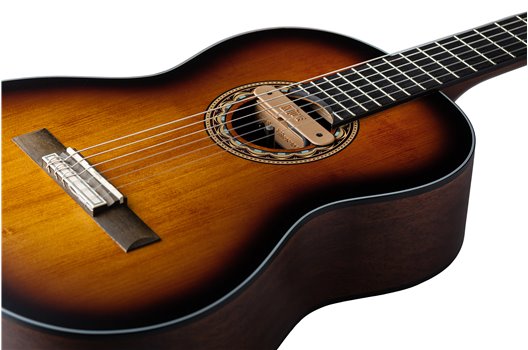

NV-Tone Swan NT (Integrated) Mocca Premium pickup for acoustic and classical guitars.
The built-in studio-quality condenser microphone captures the full spectrum of your instrument’s sound, accurately reproducing both nylon and steel strings while providing excellent feedback resistance.
Easy installation and multiple mounting options inside the guitar give you freedom and comfort in use.

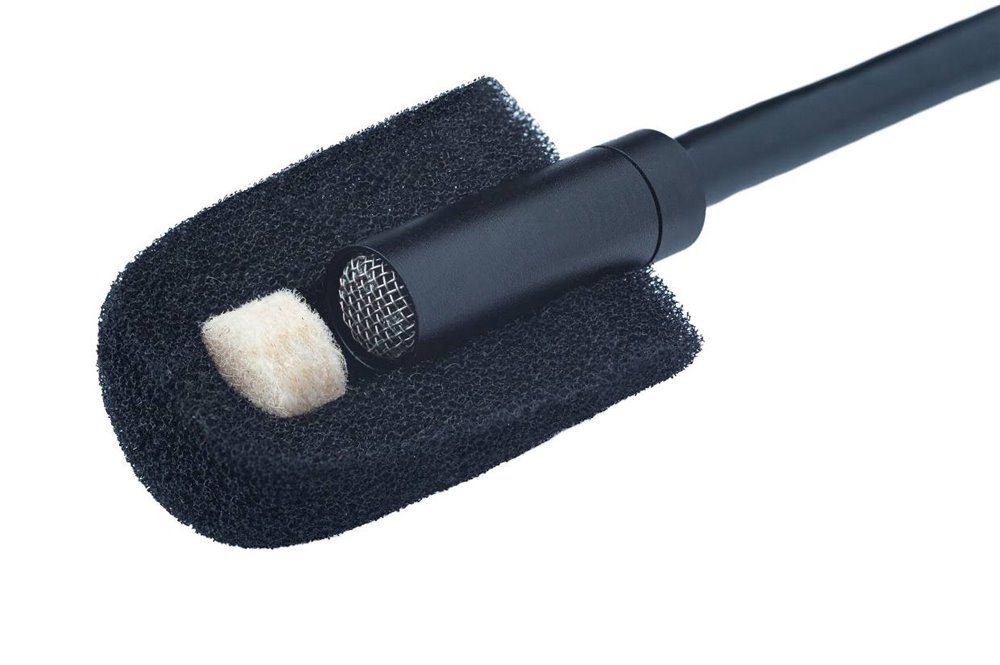

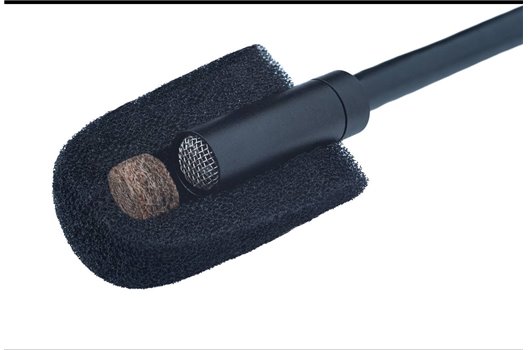

The flexible gooseneck and adjustable mounting options allow your instrument to sound its best, whether in small rooms or on stage (with a rubber suppressor).

$229 $286 -20%

No tax

Shipping from: US warehouse and central warehouse in Ukraine Note: VAT and customs duties may apply in your country. Have questions? Contact us directly — we’re always happy to help!

Description
Product Details

NV-TONE Swan NT (Integrated) Mocca

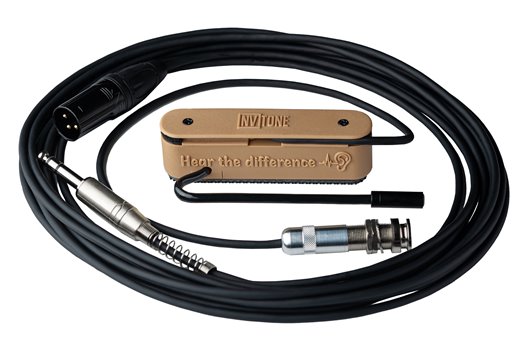

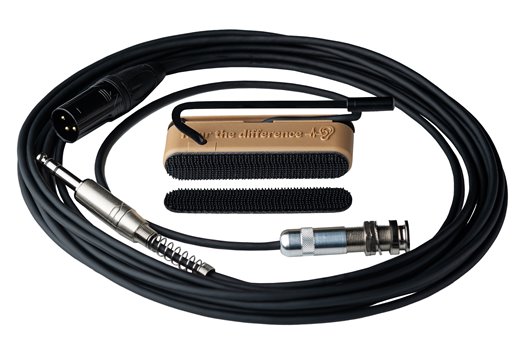

Equipment:

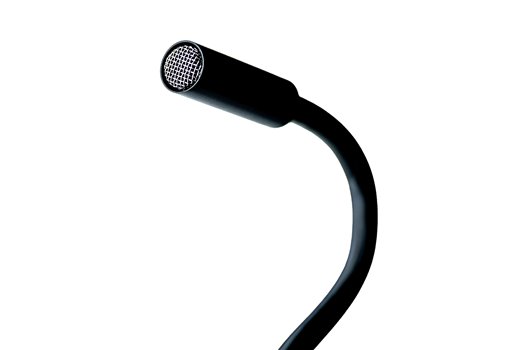

The microphone is aluminum with a flexible neck
Reliable and secure mounting for your instrument (velvet coating)
XLR inverter connector
High-quality 5-meter (16.4 ft) audio cable, one end with a stereo jack, the other end with an XLR connector
Integrated installation kit, stereo endpin with strap mount
Since the microphone is a condenser type, please use the appropriate microphone input (XLR or combo jack) on your mixer, combo amplifier, audio interface, etc.
Turn on phantom power (if required).
If phantom power is not available, use a phantom power adapter.
This affordable and simple adapter can easily be found in most music stores in your city.
The main advantage of this setup is that it eliminates the need to frequently replace batteries.
(As battery levels drop, the microphone’s sound quality degrades, creating unwanted noise at the worst possible moments. Save your time and ensure premium sound quality with us.)

DEMO SOUND 1

DEMO SOUND 2

DEMO SOUND 3

it is recommended to listen with headphones

Installation and operation manual

For internal only

Remove the strap lock from your instrument at the bottom of the guitar if it is there (we recommend this location for installing the endpin).
Make a hole with a drill or router with a diameter of 12 mm / 15/32 inches.

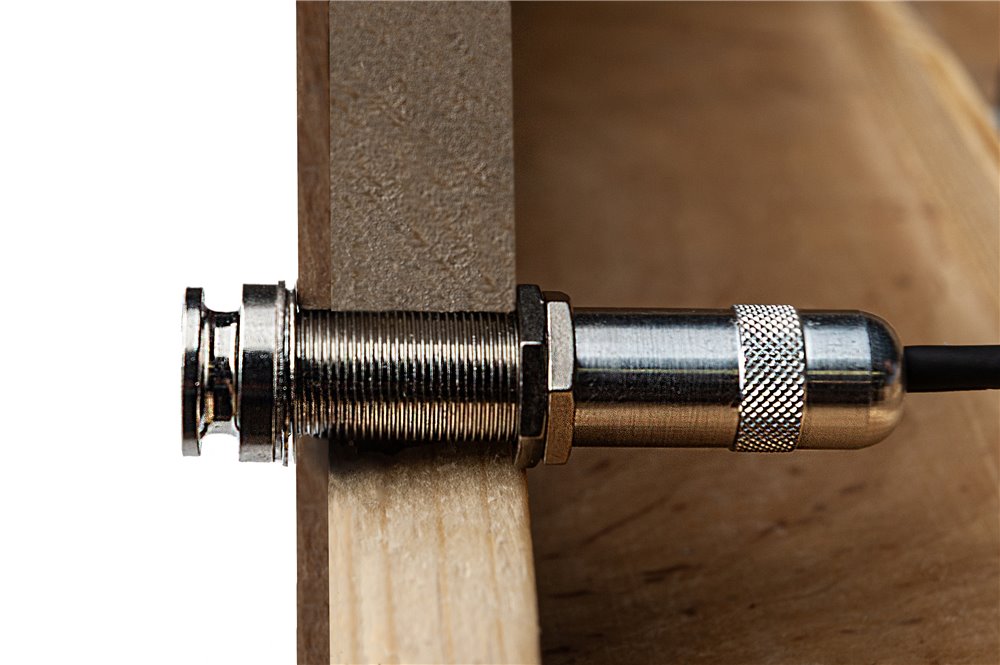

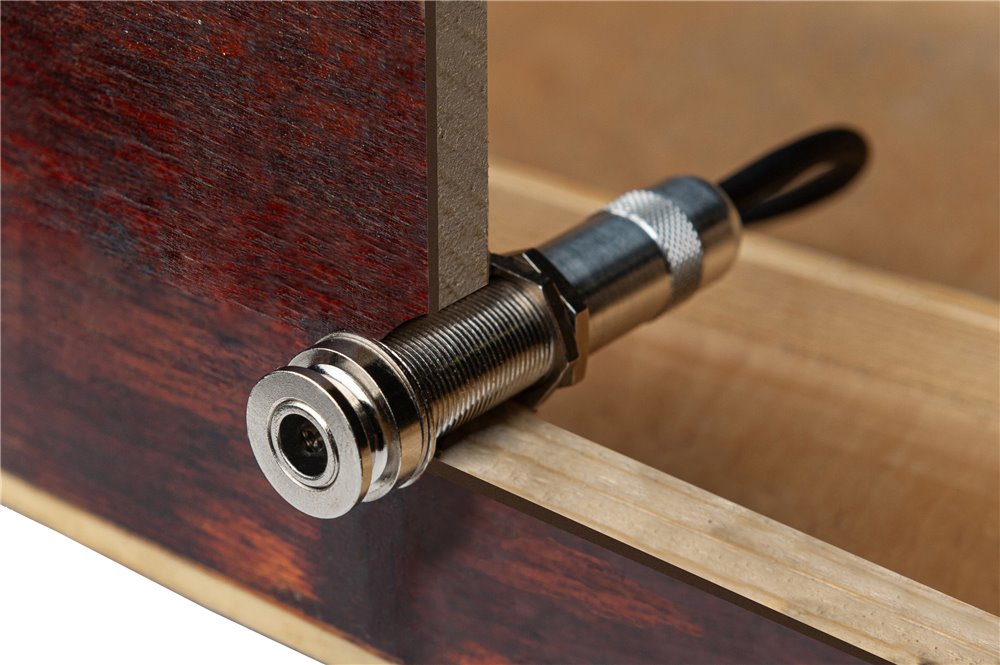

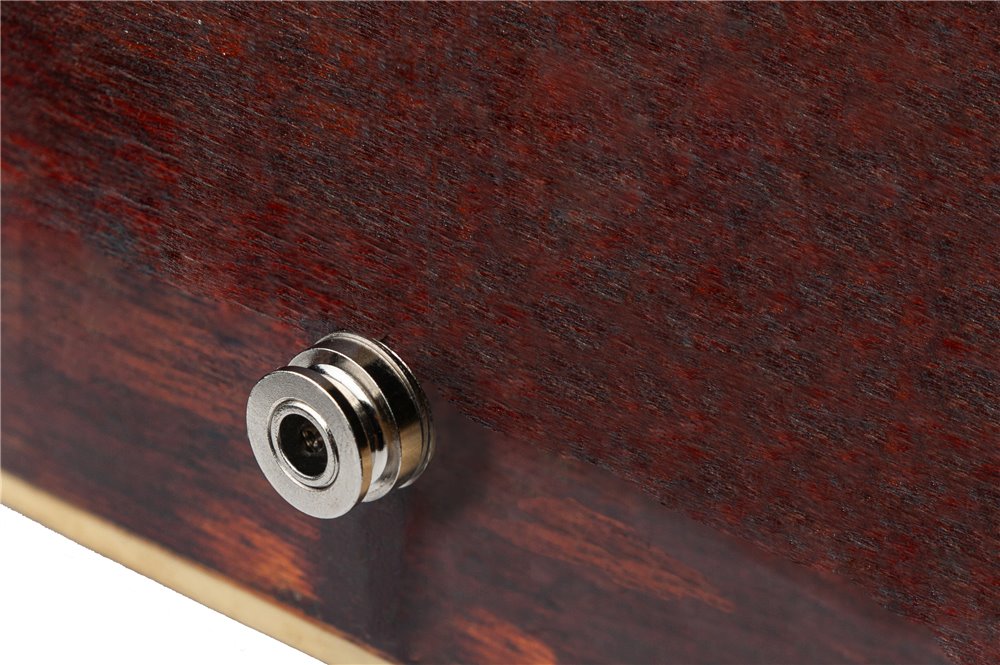

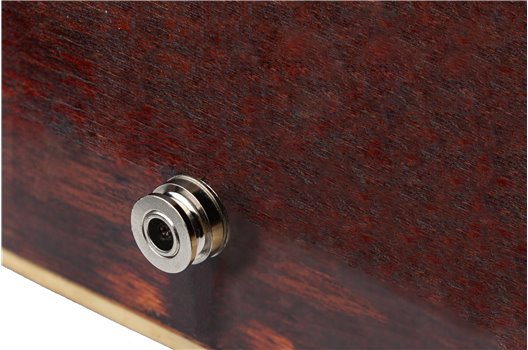

Secure the endpin with a nut and a locknut (adjusting the length of the output beforehand).
Select the direction for a left-handed or right-handed guitar on the pickup and secure the cable in the appropriate place.
Loosen the screws of the pickup slightly.

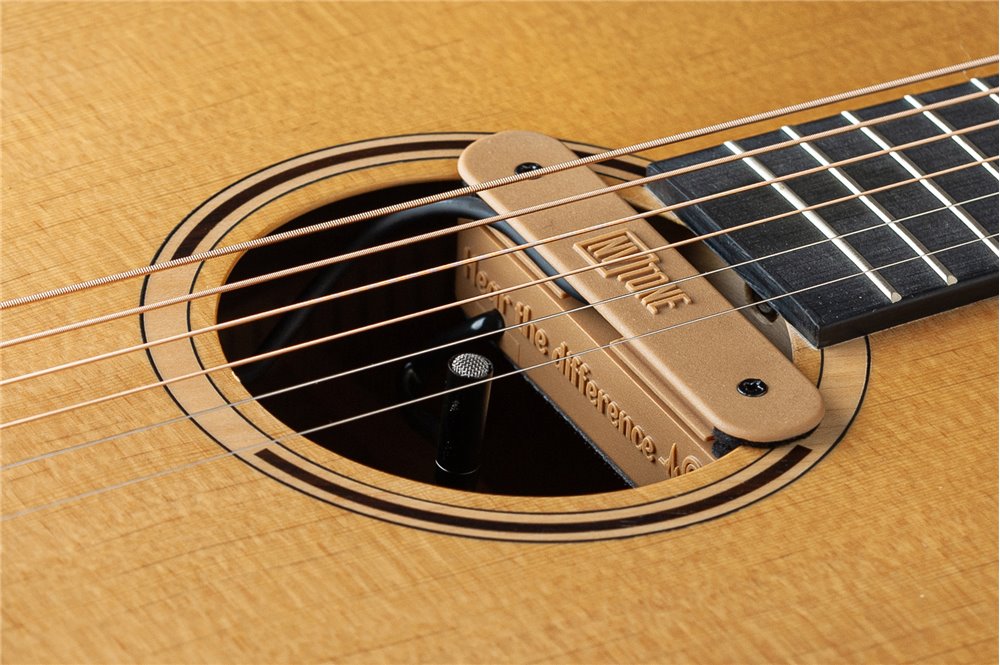

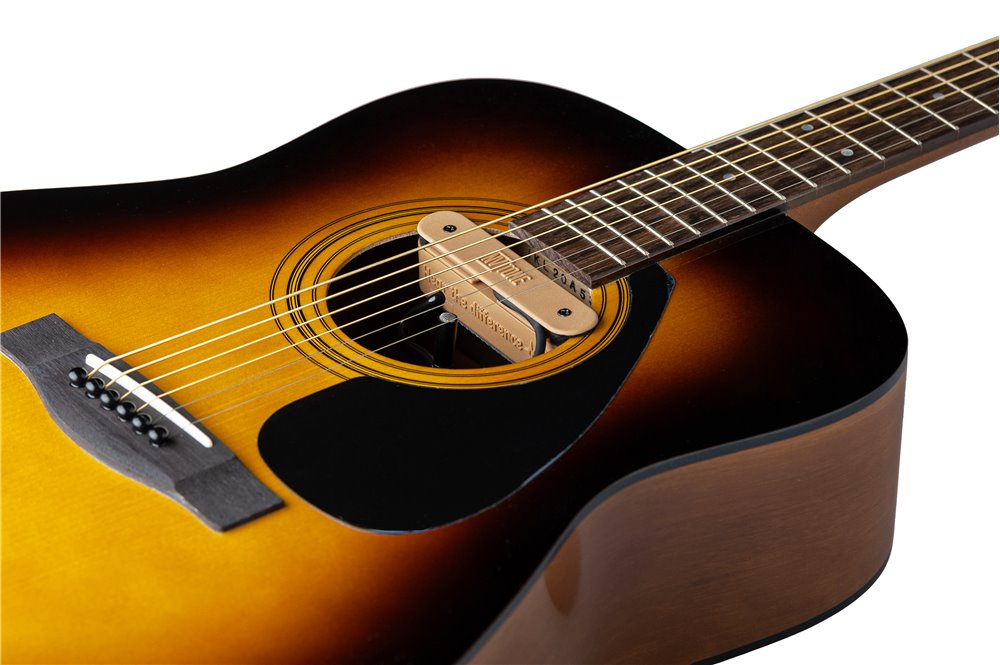

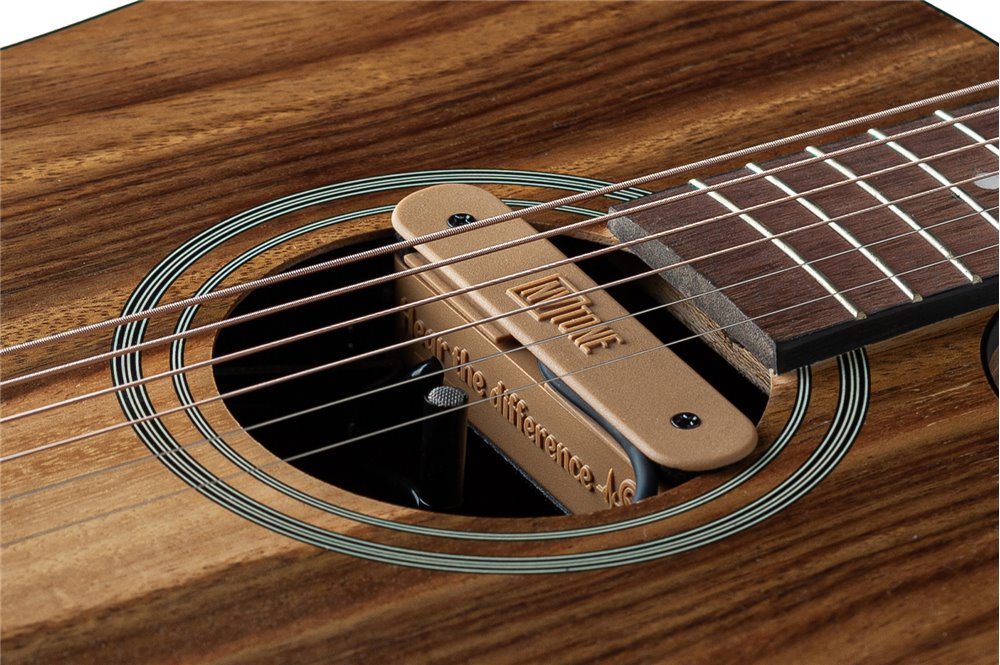

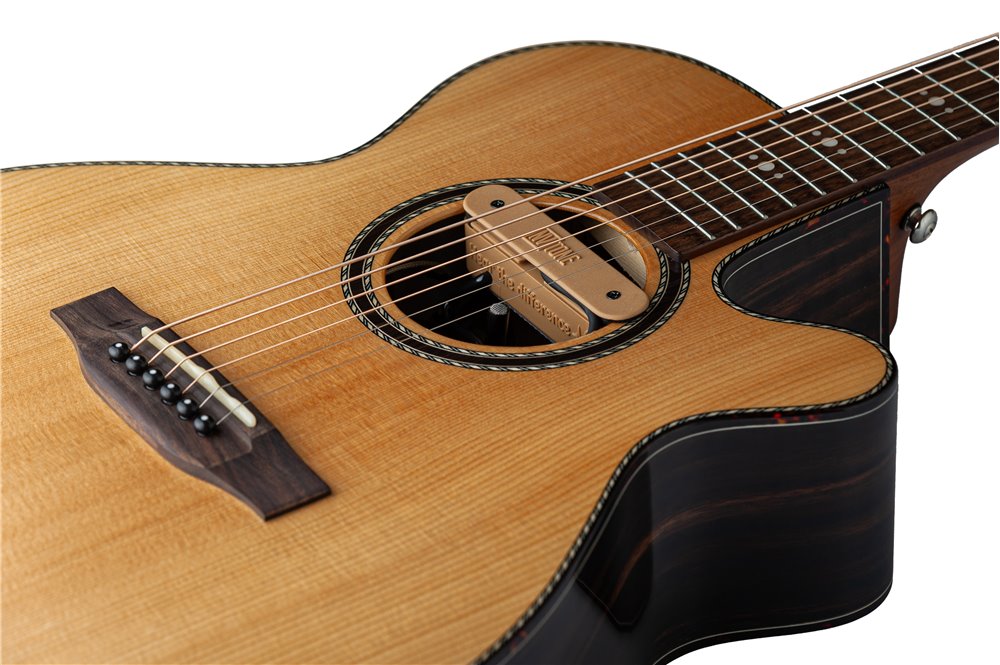

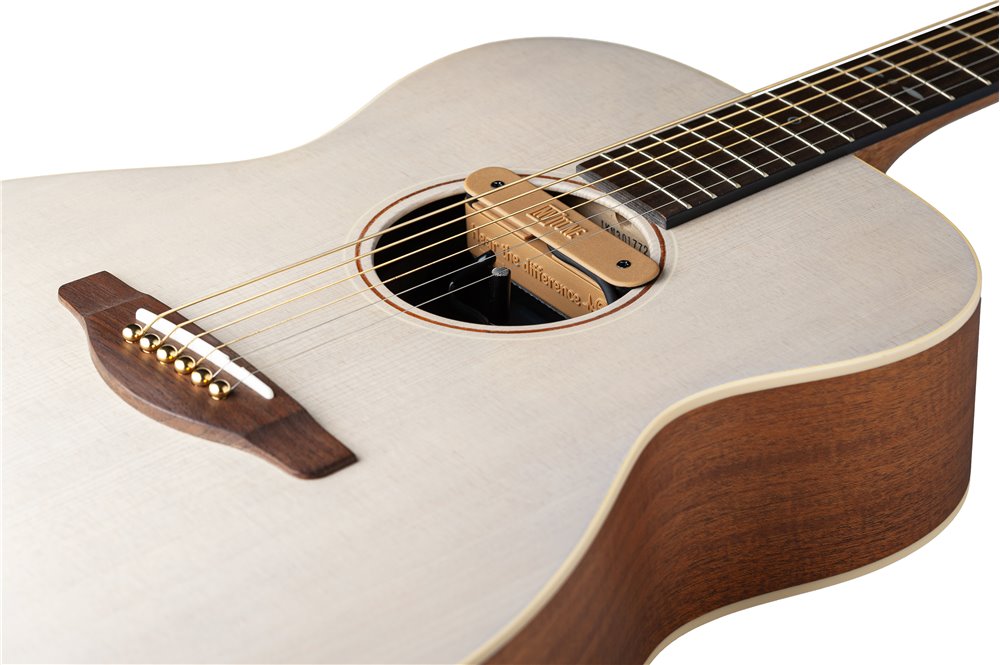

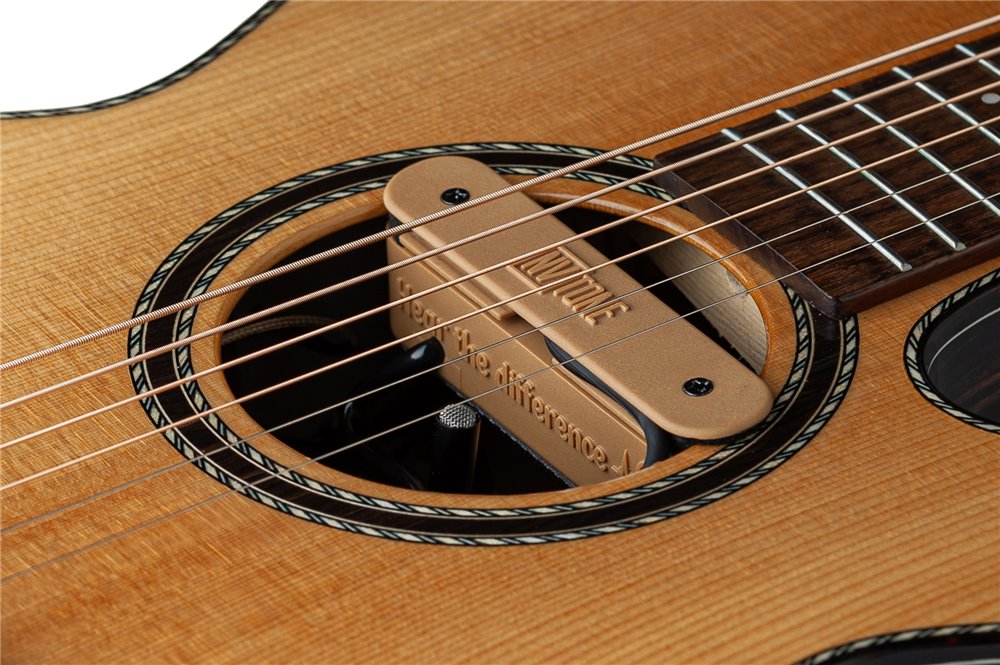

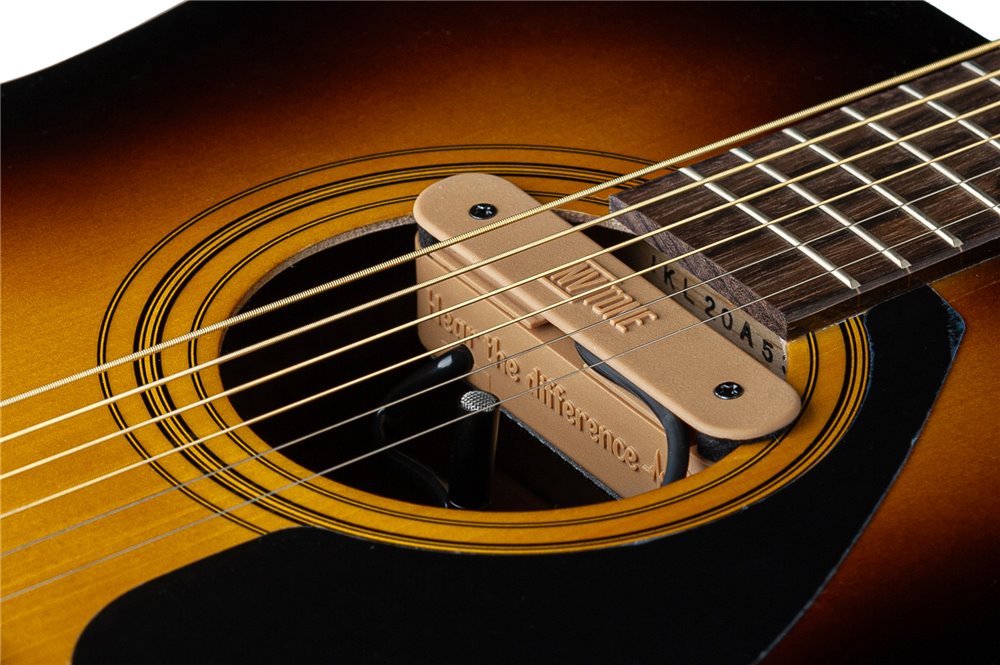

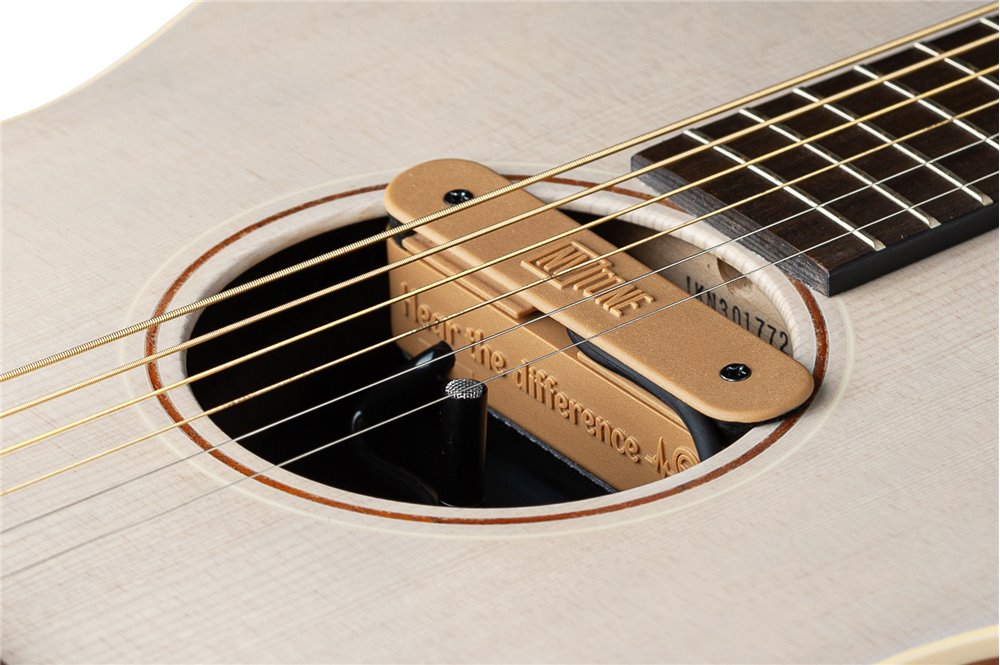

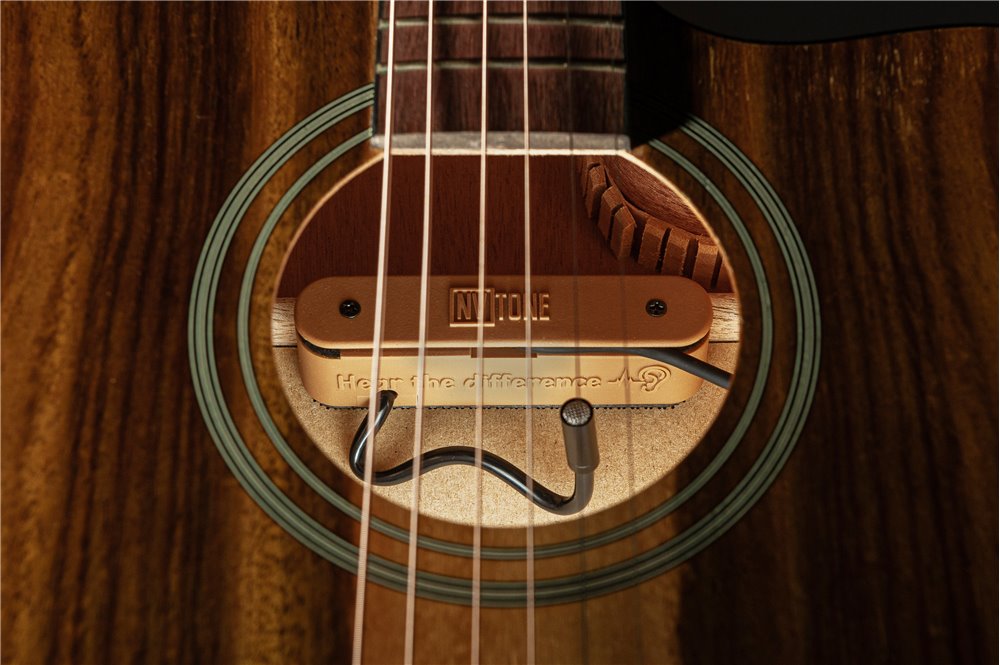

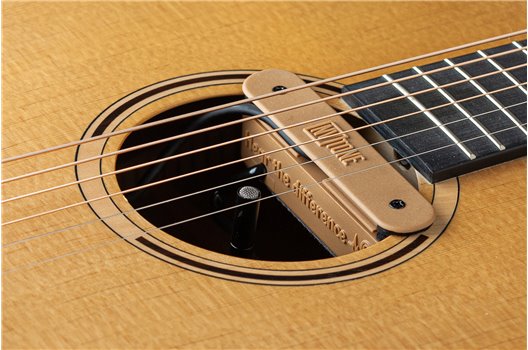

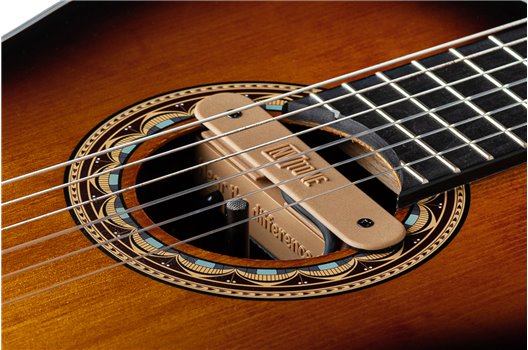

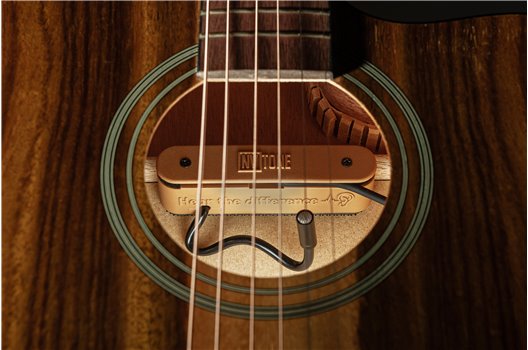

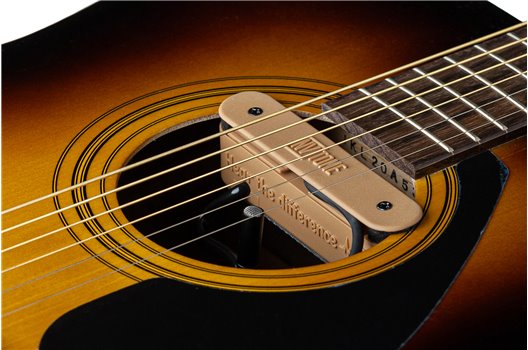

Place the pickup into the resonator hole and tighten the screws.
Connect the stereo jack to the socket in the guitar.
Connect the XLR connector to the microphone input of your combo, mixer, audio interface, etc.
Turn on the Phantom power (+48) if it is not enabled by default.

Frequency range: 20 ~ 20000 Hz
Bracket body: Polycarbonate
Cable length: 5m (16.4 ft)
Sensitivity: -32 ±3 dB
Signal-to-noise ratio: 74 dB
Operating voltage range: 12 ~ 48 VDC
Neck length: 12 cm (4.72 inch)
Directivity: omni-directional
Material: aerospace-grade 6061 aluminum
Lenght: 103mm
Width: 21mm
Minimal sound-hole lenght / diameter: 80mm
Maximal sound-hole lenght/diameter: 92mm
