NV Tone Swan XT (External) Mocca

Name: NV Tone Swan XT (External) Mocca
Brand: NV Tone
SKU: NV-SW-XT-EX-MC
Price: 249 USD
Availability: InStock

NV-Tone Swan XT (External) Mocca
Premium pickup for acoustic and classical guitars.
The built-in studio-quality condenser microphone captures the full spectrum of your instrument’s sound, accurately reproducing both nylon and steel strings, while providing excellent feedback resistance. Easy installation with no routing or other modifications required. The secure mounting and flexible gooseneck allow you to place it inside the guitar and choose the microphone position where your instrument sounds its best.

Reference NV-SW-XT-EX-MC

$249

No tax

Check Compatibility With Our Mic

✔ Fast shipping
✔ 20-day returns
✔ 2-year warranty

NV-TONE Swan XT External Mocca

A professional external condenser microphone system designed for natural acoustic guitar sound, easy installation and stable live or studio performance.

Included Equipment

Natural sheep wool tone filters included with every microphone
Aluminum microphone body with a flexible neck
Reliable mounting system with soft velvet coating
XLR inverter connector
High-quality 5 m / 16.4 ft audio cable

Power & Connection

The NV-TONE Swan XT uses a condenser microphone system and should be connected to a proper microphone input such as an XLR or combo input on your mixer, amplifier, audio interface or recording equipment.

Enable phantom power when required. If your equipment does not provide phantom power, use an external phantom power adapter.

One of the biggest advantages of this setup is stable sound without batteries. Battery-powered systems can lose sound quality and introduce unwanted noise as power decreases.

Demo Sound

DEMO SOUND 1

DEMO SOUND 2

DEMO SOUND 3

For the best listening experience, we recommend using headphones.

External Installation Guide

1 Unwind the cable and select the correct orientation for left-handed or right-handed guitar installation.

2 Secure the cable neatly in the appropriate position.

3 Slightly loosen the pickup screws before mounting.

4 Place the pickup into the soundhole and tighten the screws securely.

5 Connect the XLR output to the microphone input of your mixer, combo amplifier, audio interface or similar equipment.

6 Enable phantom power if it is not already active.

Bracket body: Polycarbonate
Cable length: 5m (16.4 ft)
Frequency range: 20 ~ 20000 Hz
Sensitivity: -32 ±3 dB
Signal-to-noise ratio: 74 dB
Operating voltage range: 12 ~ 48 VDC
Neck length: 12 cm (4.72 inch)
Directivity: omni-directional
Material: aerospace-grade 6061 aluminum
Lenght: 103mm
Width: 21mm
Minimal sound-hole lenght / diameter: 80mm
Maximal sound-hole lenght/diameter: 92mm

How It Works

The NV-Tone Swan microphone delivers a natural, clear and balanced sound on both classical nylon-string guitars and acoustic steel-string guitars.

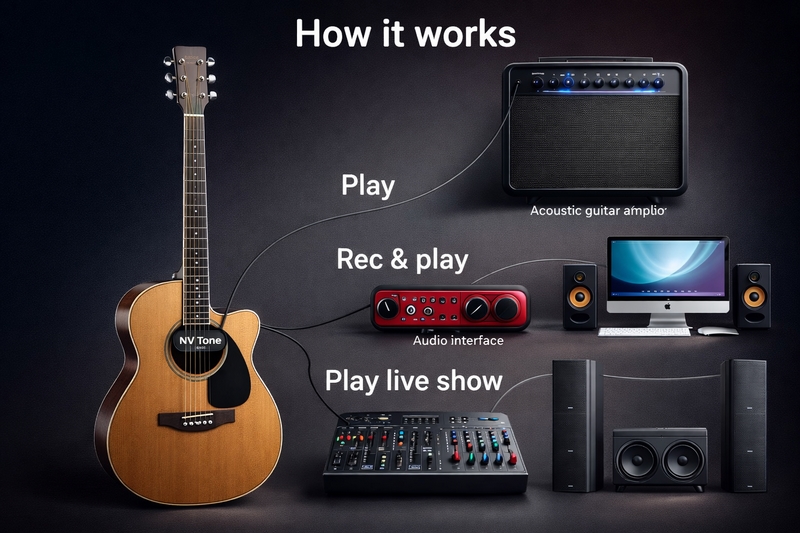

How NV-TONE Swan microphone works with amplifiers, audio interfaces and live sound systems

1 Install the microphone inside your guitar using the official NV-Tone installation guide.

2 Connect the microphone to the XLR input of your audio interface, mixer, preamp or recorder.

3 Enable phantom power. The microphone works with +12V to +48V phantom power.

4 Adjust input gain and output volume. Usually 30–40% is enough.

5 Play, record or perform live with a stable and natural microphone sound.

Important: If your equipment does not provide +12–48V phantom power, use an external phantom power supply such as XVIVE P1, BEHRINGER PS400, ART Phantom I, Mackie M48, PSC 48 Phantom or a similar device.

Alternative Mounting Method with 3M Dual Lock SJ3540

For players who prefer a removable installation, the microphone can also be mounted inside the guitar using 3M Dual Lock SJ3540. This method provides a firm hold without drilling the guitar body.

NV-Tone Swan microphone mounted inside guitar

3M Dual Lock SJ3540 inside acoustic guitar

Alternative installation of NV-Tone Swan microphone

Benefits of this method

Strong fixation: 3M Dual Lock provides a stronger hold than regular Velcro and can safely support the microphone mount.
No drilling: the guitar body does not need to be drilled or permanently modified.
Vibration reduction: the dense structure of the fastener helps reduce unwanted vibration transfer.
Removable installation: the microphone can be attached or removed when needed.

Installation recommendations

Clean the mounting area inside the guitar from dust and rough particles.
Degrease the surface using a safe cleaner suitable for musical instruments.
Apply the 3M Dual Lock tape firmly to the selected area.
Allow the adhesive to set for 24 hours before attaching the microphone.

Installation & Operation Guide

The NV-Tone Swan microphone system is designed for quick installation and professional performance on both classical and acoustic guitars.

External Setup

For External Installation

1 Unwind the cable and select the correct orientation for left-handed or right-handed guitar positioning.

2 Secure the cable in the appropriate position inside the guitar body.

3 Slightly loosen the pickup screws before installation.

4 Carefully place the pickup into the soundhole and tighten the screws securely.

5 Connect the XLR output to a mixer, combo amplifier, audio interface or other microphone input device.

6 Enable phantom power if it is not already active.

Internal Setup

For Internal Installation

1 Remove the strap lock from the bottom of the guitar if installed. This location is recommended for the endpin output.

2 Create a 12 mm (15/32") hole using a drill or router.

3 Install and secure the endpin using the supplied nut and locknut. Adjust the output length beforehand if necessary.

4 Select the proper cable orientation for left-handed or right-handed guitar installation.

5 Secure the cable neatly inside the instrument body.

6 Loosen the pickup screws slightly before mounting.

7 Place the pickup into the resonator opening and tighten the screws carefully.

8 Connect the stereo jack to the internal guitar socket.

9 Connect the XLR output to your mixer, amplifier, preamp or audio interface.

10 Activate +48V phantom power if it is not enabled by default.
